Fiber Optic Patch Cords Guide in Egypt: Types, Connectors & How to Choose the Right Cable
A practical guide for installers, contractors, companies, and network teams who want stable fiber connections, lower signal loss, and the right cable choice for FTTH, ODF, SFP modules, CCTV fiber links, telecom, and data centers.
Why Choosing the Right Fiber Patch Cord Matters
Fiber optic patch cords may look simple, but choosing the wrong connector, fiber type, polish type, or jacket can cause weak signal, unstable links, compatibility problems, and project delays.
In professional low current and network projects, the fiber patch cord connects critical points such as SFP modules, switches, ODF panels, media converters, optical receivers, fiber distribution boxes, and telecom equipment. That means one wrong cable can affect the whole link.

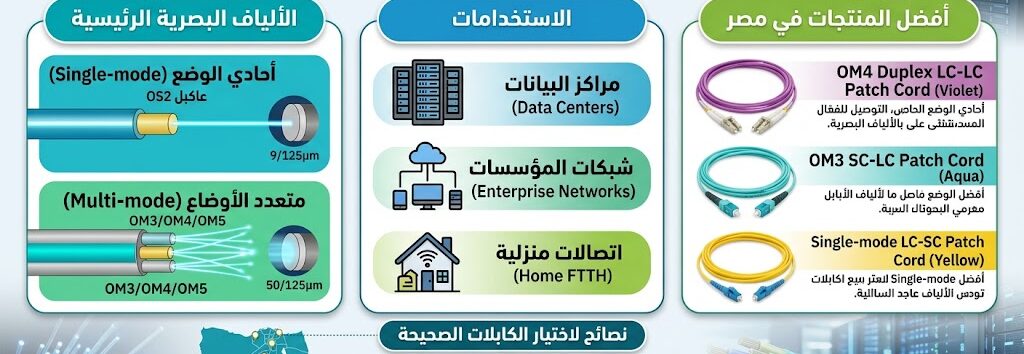

Fiber Patch Cord Types Explained
Best for long-distance links, FTTH, ISP infrastructure, outdoor backbone, ODF connections, and fiber uplinks.
Best for short-distance high-speed connections inside data centers, server rooms, racks, switches, and storage networks.
Contains one fiber core. Common in specific transmit/receive applications, FTTH links, and certain telecom connections.
Contains two fiber cores, usually used for simultaneous transmit and receive between switches, SFP modules, servers, and patch panels.
Fiber Connector Types: LC, SC, FC, APC & UPC
Connector compatibility is one of the most important points in fiber installation. The cable must match the equipment on both sides.
| Connector / Polish | Common Use | Best For |
|---|---|---|
| LC | Small connector used with SFP / SFP+ modules and switches | Switches, servers, data racks, high-density fiber panels |
| SC | Standard connector widely used in FTTH and ODF | FTTH, ODF panels, fiber boxes, telecom rooms |
| FC | Screw-lock connector for secure connection | Telecom equipment, test devices, stable fixed links |
| APC | Angled polish, usually green connector | FTTH, TV/fiber distribution, low reflection applications |
| UPC | Ultra physical contact polish, usually blue connector | Data networks, switches, SFP links, general fiber connections |
How to Choose the Right Fiber Cable for Your Project
Define the Application
Is it FTTH, data center, switch uplink, ODF connection, CCTV fiber link, telecom, or SMATV fiber distribution?
Choose Fiber Type
Use OS2 single mode for long distance. Use OM4 multimode for high-speed short-distance data center connections.
Match Connector Types
Check both ends: LC, SC, FC, APC, UPC. Don’t assume all fiber connectors are compatible.
Check Simplex or Duplex
Simplex uses one fiber. Duplex uses two fibers and is common with switch/SFP connections.
Use LSZH for Indoor Safety
LSZH jacket is recommended for indoor buildings, offices, racks, and low current installations.
Recommended Fiber Products Available from AY Technology
These products help you build reliable fiber links for different applications: long-distance OS2 connections, high-speed OM4 data center links, and fiber accessories for professional projects.
NORDEN SC/APC to LC/UPC OS2 Simplex Fiber Patch Cord 10M LSZH
- Best for FTTH, ODF, and fiber distribution boxes
- SC/APC to LC/UPC hybrid connection
- 10M length with LSZH jacket
NORDEN FC/PC to LC/UPC OS2 Simplex Fiber Patch Cord LSZH 15M
- Suitable for telecom and ODF connections
- FC/PC to LC/UPC connector design
- 15M length for flexible installation
HP Premier Flex LC/LC OM4 Duplex Fiber Patch Cord 15M QK735A
- Ideal for data centers and server rooms
- LC/LC duplex for switches and SFP modules
- OM4 multimode for high-speed short-distance links
D-Link LC/SC Single Mode Duplex Fiber Patch Cord 3M
- Useful for rack and ODF short links
- LC/SC connection for mixed interfaces
- Professional structured cabling use
Huawei 1.25G SFP Optical Module 1310nm 10km Single Mode
- For single mode fiber links
- Useful with LC fiber patch cords
- Suitable for switches and routers
Huawei 10G SFP+ Optical Module 1310nm 10km Single Mode
- For 10G fiber uplinks
- Single mode 1310nm applications
- Enterprise and ISP infrastructure
Quick Selection Table
| Use Case | Recommended Choice | Why? |
|---|---|---|
| FTTH / ODF | OS2 SC/APC to LC/UPC | Low reflection and suitable for long-distance fiber links |
| Telecom Equipment | FC/PC to LC/UPC OS2 | Secure FC connector with single mode performance |
| Data Center / Server Room | LC/LC OM4 Duplex | High-speed short-distance transmission |
| Switch to SFP Module | LC connector patch cord | Most SFP/SFP+ modules use LC interface |
| Indoor Building Installation | LSZH Jacket | Safer for indoor environments |
Common Mistakes When Buying Fiber Patch Cords
- Buying by cable length only without checking connector type.
- Mixing APC and UPC connectors without understanding reflection impact.
- Using multimode fiber where single mode is required.
- Using simplex instead of duplex for SFP links.
- Ignoring LSZH jacket in indoor installations.
- Choosing a cable without checking the equipment interface on both sides.
Why Buy Fiber Products from AY Technology?
We help you choose the right fiber cable, SFP module, connector type, and length according to your project.
Our store focuses on networking, fiber optic, SFP, SMATV, and low current components for professional installations.
Suitable for contractors, companies, IT teams, hotels, compounds, offices, and large-scale infrastructure projects.
We don’t just sell a cable. We help you build a stable link with the right accessories and professional guidance.
Need Help Choosing the Right Fiber Cable?
Send us your switch model, SFP type, ODF connector, required distance, and application. AY Technology will help you choose the right product before you buy.
Request Technical Support on WhatsApp Call 01200077165Frequently Asked Questions
What is the difference between OS2 and OM4 fiber?
OS2 is single mode fiber used for long-distance transmission, while OM4 is multimode fiber used for high-speed short-distance links such as data centers and server rooms.
Which fiber connector is used with SFP modules?
Most SFP and SFP+ modules use LC connectors, so LC fiber patch cords are commonly used for switch and router uplinks.
What is the difference between APC and UPC?
APC uses an angled polish to reduce reflection, while UPC uses a standard ultra-polished finish. APC is common in FTTH and low-reflection applications.
When should I use simplex fiber?
Simplex fiber has one fiber core and is used in specific one-way or paired optical applications. Always check the equipment requirement before choosing simplex.
When should I use duplex fiber?
Duplex fiber has two fiber cores and is commonly used for transmit and receive connections between switches, SFP modules, servers, and patch panels.
Why is LSZH jacket important?
LSZH stands for Low Smoke Zero Halogen. It is recommended for indoor installations because it reduces smoke and harmful emissions in case of fire.
